Curved Panel Systems
A space division option more compatible with your room design than any straight-line operable wall can achieve.
Every curved panel system is engineered to AEC's exacting standards for performance, longevity, and ease of use.
Design Without Limits

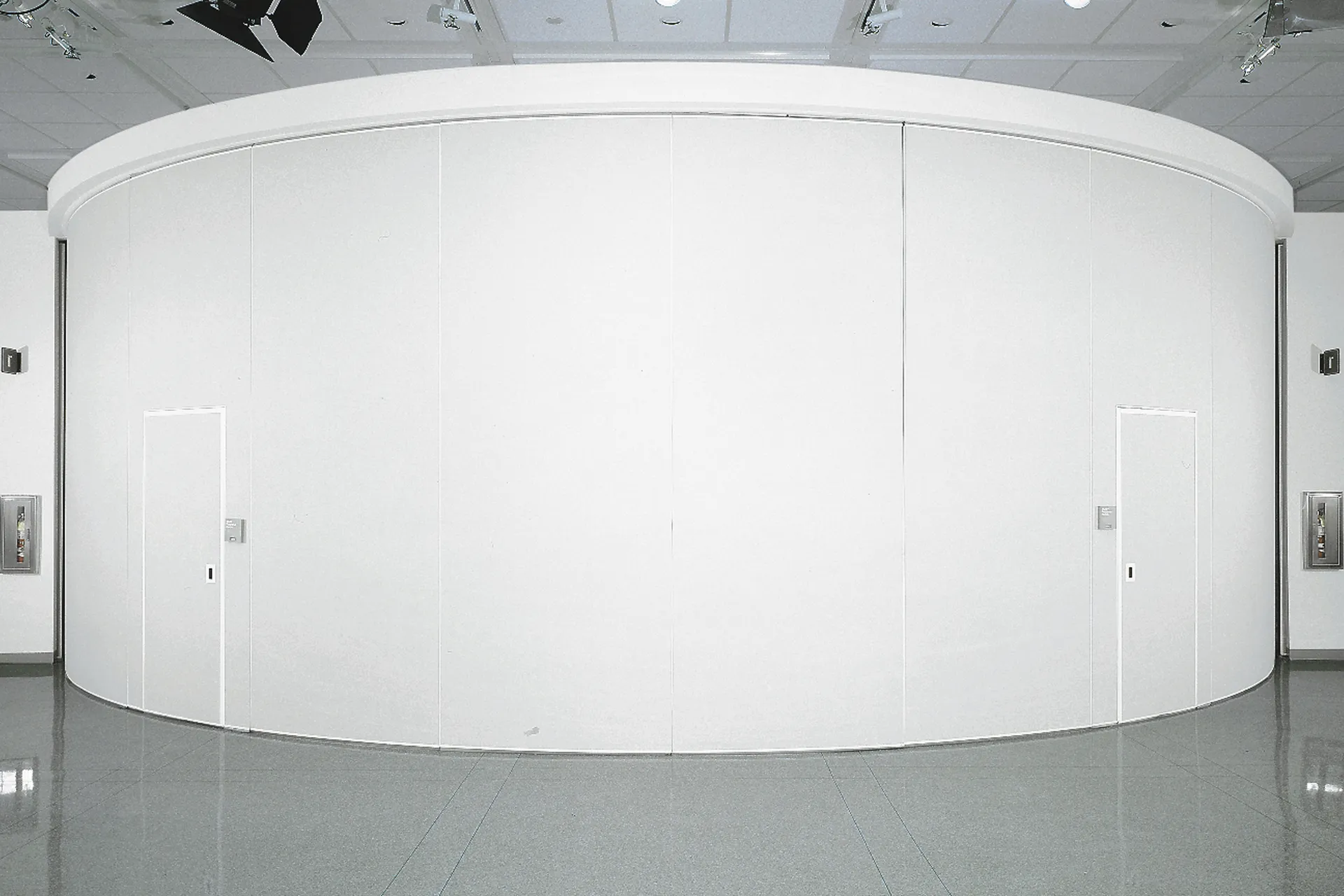

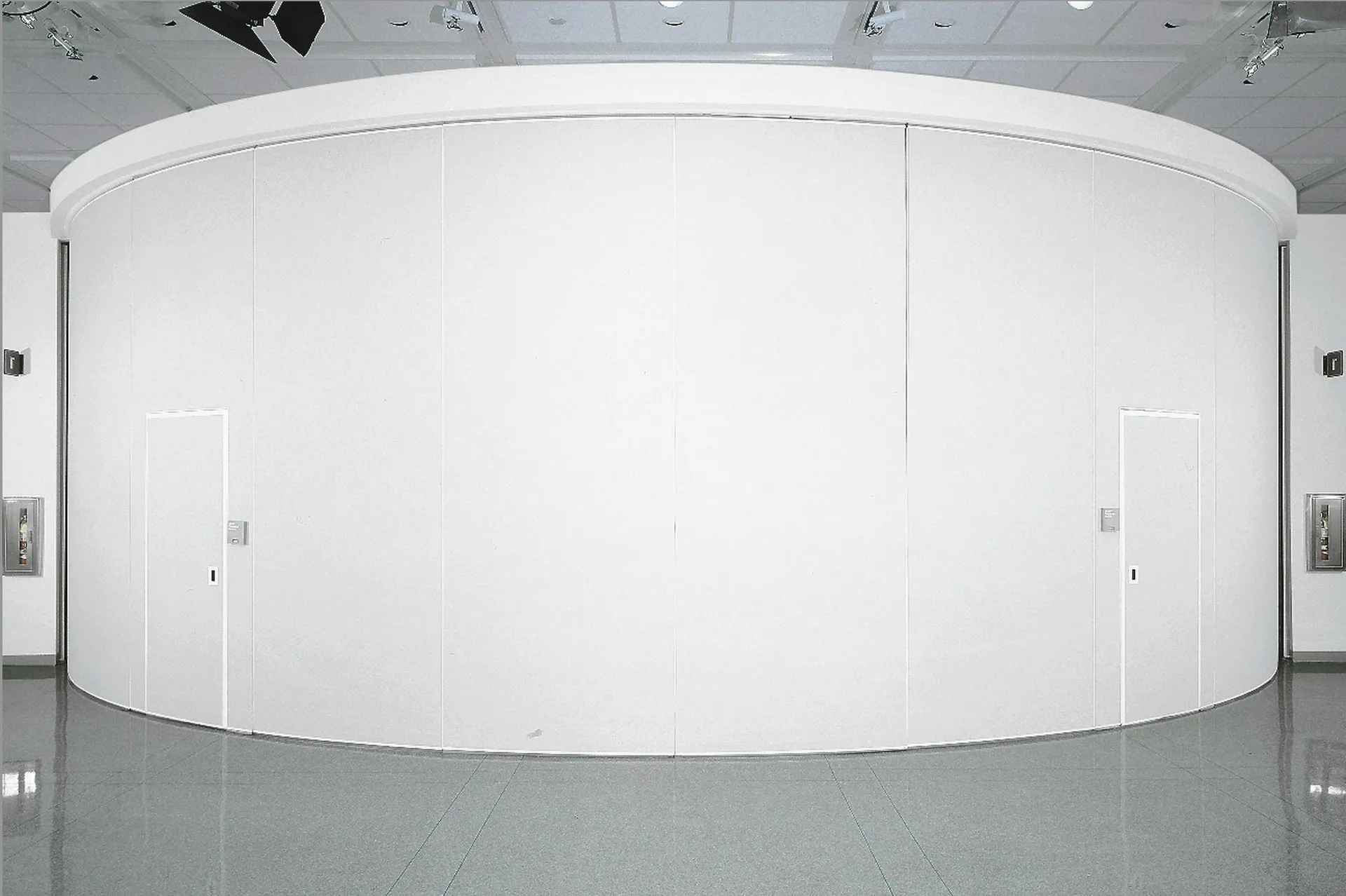

The use of CURVE panel operation on curved tracks of the same radius provides the designer with a space division option that may be more compatible with the room design than can be achieved with the typical straight-line operable wall.
- Manual or electric operation
- Curved panels and curved track of the same radius
- Compatible with ALPHA panel construction
- Custom radius to suit any architectural design
Why Choose Curved Systems?
The unique advantages that make curved panel systems a distinctive design choice.
Only Product Available with Radiused Track and Panels
AEC is the only manufacturer offering both radiused track and matching curved panels as a single integrated system — no compromises, no workarounds.
Aesthetics
Curved panel operation on curved tracks of the same radius provides a space division option that is more compatible with the room design than can be achieved with a typical straight-line operable wall.
Panel Construction
Curved panels are fabricated on ALPHA series construction — all-welded, all-steel — custom-formed to your project's exact radius. Track systems are CNC-manufactured to match, ensuring perfect alignment through the full curve.
ALPHA® Curved Panels
All-welded steel panels formed to a custom radius. One-piece panels to 60 feet high, widths to 60 inches. STC to 53, NIC 42 ASTM E 336.
- Custom radius fabrication
- One-piece panels to 60 ft high
- STC to 53, NIC 42 ASTM E 336
- 10-year limited panel warranty
- Available NRC 0.65
Radiused Track System
CNC-manufactured curved track precisely matched to panel radius. Tight radius (min. 3 ft) to any large radius — no maximum limitation.
- Minimum 3-ft radius
- No maximum radius
- Combines with straight sections
- Manual or electric compatible
Operation Options
Curved systems are available in manual operation or fully electric drive, depending on panel count and venue requirements.
- Manual or electric drive
- Compatible with ALPHA series
- Pocket or center-stack storage
- Custom finish options
Writing a valid operable wall specification is as easy as 1-2-3
Use DWSpec™ to generate accurate, project-specific specifications for any curved panel system in minutes.
New to the process? Read our six-step guide to specifying an operable partition.
Related Systems
Explore other operable wall solutions from Advanced Equipment.
Individual Panels
Classic single-panel manual operable walls in three series — ALPHA, SIGMA, and GAMMA — for every budget and performance requirement.
Learn More →Electric Operation
Fully motorized operable wall systems. Ideal for large panels, high-frequency use, and venues requiring minimal staff operation.
Learn More →Manual Operation
Manually operated operable wall systems offering reliable, cost-effective space division for any venue size and configuration.
Learn More →Ready to Specify a Curved System?
Our engineering team can help design a custom curved partition system for your unique architectural requirements.
